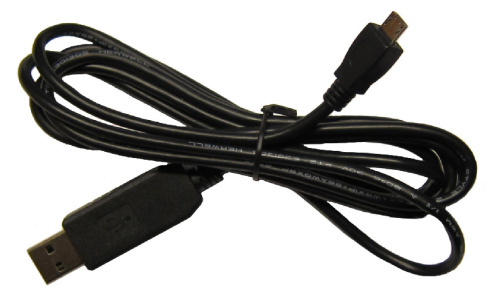

Cable USB type A to micro USB 5-pin. 1.0 meters, with integrated USB to UART converter.

USB to UART cable, Micro USB connector.

Enable USB connectivity on systems that only have UART connection.

Features:

• USB type A to micro USB 5-pin

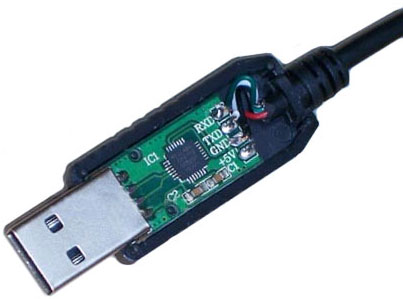

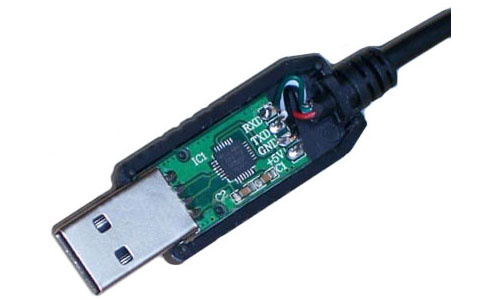

• Converting board with CP2102 chip integrated in USB A housing
• 3.3V TTL levels
• Cable supplies 5V to the target
• Support Windows 9X/Window2000/XP/7/Vista, Linux, Macintosh.
• Data transfer rates from 300 Baud to 1Mbit Baud

Micro USB Pinout:

??? 1: 5V
??? 2: CP2102's TX (connect to target's RX)
??? 3: CP2102's RX (connect to target's TX)
??? 4: NC
??? 5: GND

?

CP2102 Datasheet

CP2102 Drivers
